Cov ntsiab lus tseem ceeb
|
Yam khoom qauv |
GP63-S-BIW |
GP63-S-CIW |
|
Rated tam sim no (A) |
2.6 |
2.5 |
|
Chav ntsuas kub tsis kam (Ω) |
4.1 |
3.7 |
|
Rated Force (N) |
170 |
160 |
|
Rated Stroke (mm) |
4
|
|
|
Tag nrho Stroke (mm) |
Ntau dua lossis sib npaug li 9
|
|
|
Lag yam ntxwv (%) |
Tsawg dua los yog sib npaug 3
|
|
|
Rov ua dua Precision (%) |
Tsawg dua los yog sib npaug li 1
|
|
|
Roj siab (MPa) |
24 |
|
|
Roj kub ntawm kev ua haujlwm (degree) |
-20- ntxiv 70
|
|
|
Kev Tiv Thaiv Degree ntawm Enclosure |
IP65
|
|
|
Fais fab txuas hom |
Pin hom |
Junction Box |

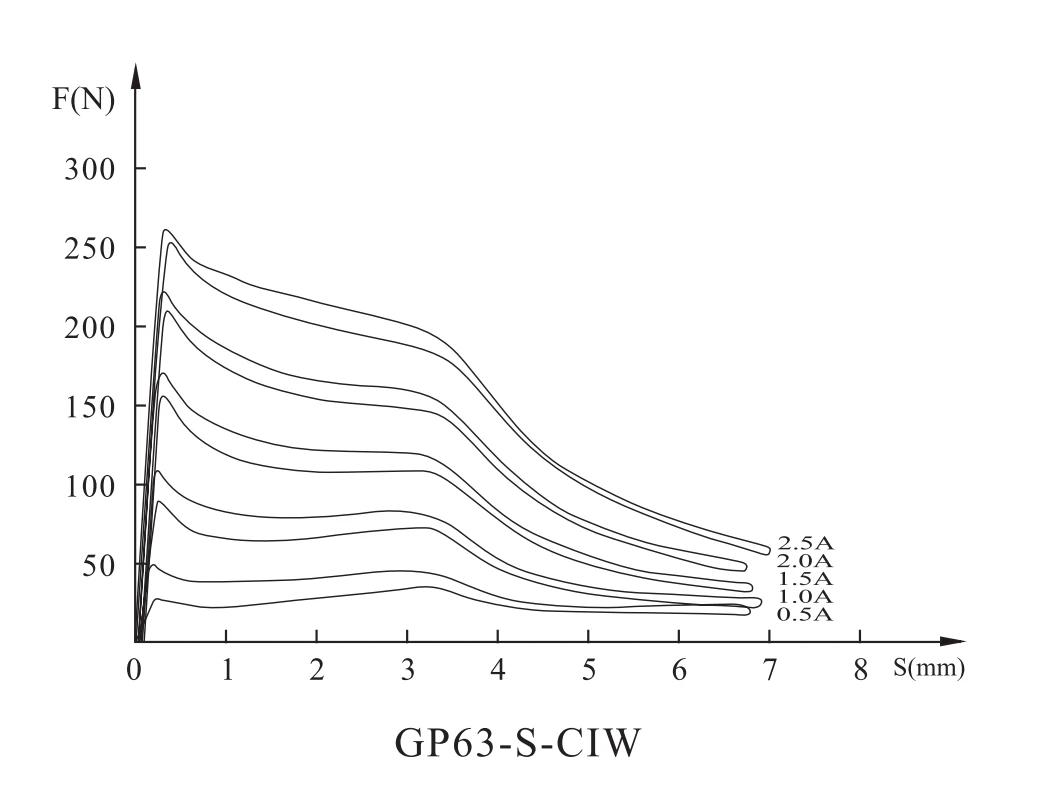

Stroke--Pob

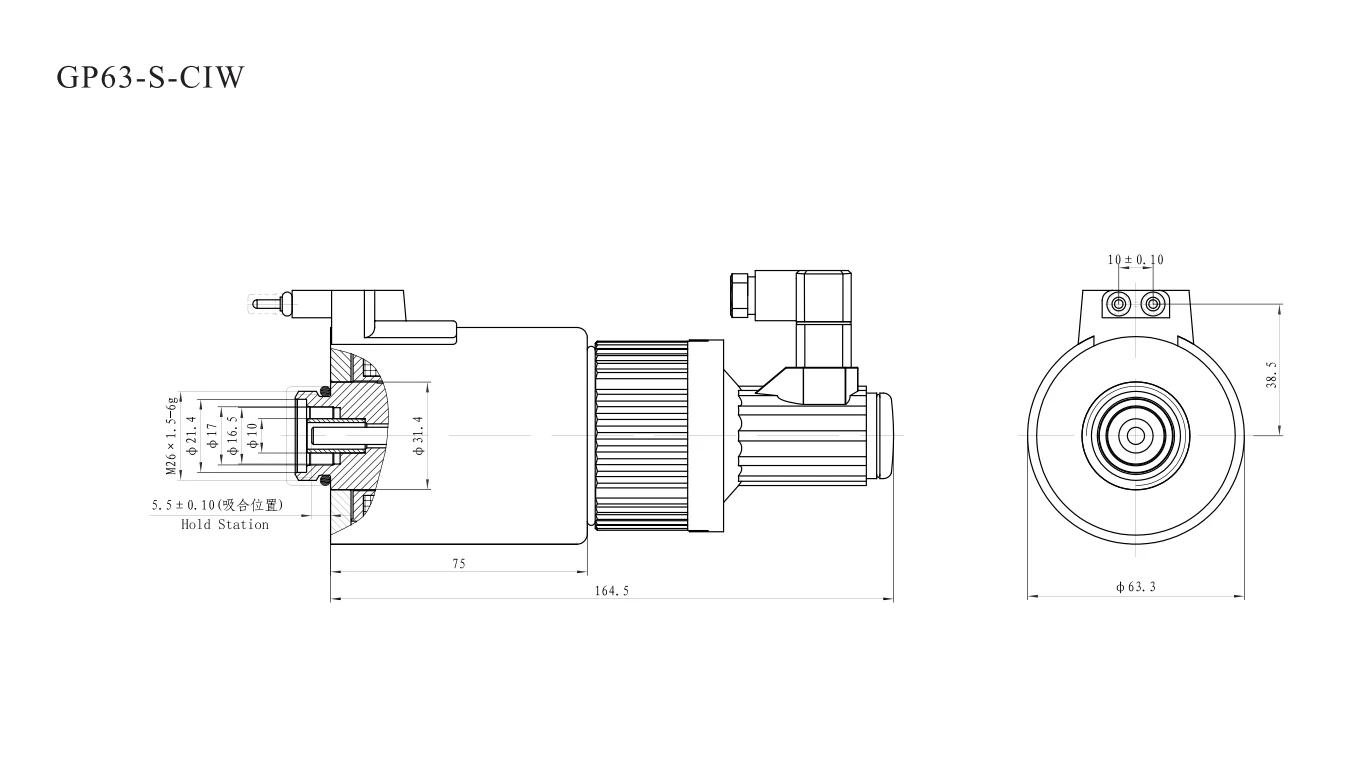

Sab nrauv & Installation Dimensions
Kev ua haujlwm ntawm solenoid
Thaum lub zog muaj zog, lub zog solenoid qhib lub qhov tsav, lub siab nyob rau hauv lub chamber sab saud poob sai heev, thiab lub siab sib txawv yog tsim nyob ib ncig ntawm lub kaw, thiab cov kua siab thawb lub kaw ib feem kom txav mus, thiab lub valve qhib; Thaum lub hwj chim tawm, Lub caij nplooj ntoos hlav quab yuam kaw lub qhov tsav, thiab lub qhov nkag siab sai dhau los ntawm lub qhov bypass los tsim qhov sib txawv ntawm lub valve kaw cov tswv cuab, uas yog qis dua thiab sab saud, thiab cov kua dej siab thawb cov neeg kaw rau. txav mus rau hauv qab thiab kaw lub valve.
Nrov science
Lub kaw-voj solenoid yog ib qho khoom siv hluav taws xob uas hloov hluav taws xob hluav taws xob mus rau hauv cov lus tsa suab. Nws muaj ib tug hlau kauj, ib tug tub ntxhais uas yog ferromagnetic los yog tsis-magnetic, thiab ib tug plunger los yog armature. Thaum cov hluav taws xob tam sim no siv rau lub kauj, ib qho chaw sib nqus yog tsim, uas nyiam cov tub ntxhais ferromagnetic lossis armature. Qhov no tsim tawm cov lus tsa suab, uas tuaj yeem siv rau ntau yam kev siv, suav nrog kev tswj valve, tswj kev txav, thiab automation. Nyob rau hauv lub kaw-voj configuration, lub solenoid muaj ib tug tawm tswv yim mechanism uas tso cai rau kom meej meej tswj ntawm lub zog thiab txoj hauj lwm ntawm armature, muab siab raug thiab repeatability. Hom solenoid no feem ntau siv rau hauv cov ntawv thov uas qhov tseeb yog qhov tseem ceeb, xws li hauv cov neeg hlau, aerospace, thiab cov cuab yeej kho mob.
FQA
Q: Dab tsi yog qhov zoo ntawm koj lub tuam txhab?
A: Peb yog cov chaw tsim khoom, nrog lub sijhawm xa khoom ruaj khov, muaj kev nyab xeeb thiab txuag hluav taws xob, thiab kev lav zoo tom qab muag.
Peb cov khoom siv kuaj
Roj siab kuaj lub rooj ntev zaum
Spectrum analyzer
