Ntsiab Parameters
|
Khoom qauv |
GRF{0}}A |
|
Rated tam sim no (A) |
3.2 |
|
Chav ntsuas kub tsis kam (Ω) |
2.2 |
|
Rated Force (N) |
90 |
|
Rated Stroke (mm) |
3.2 |
|
Tag nrho Stroke (mm) |
6.5 |
|
Force Lag yam ntxwv (%) |
Tsawg dua los yog sib npaug li 4 |
|
Cov yam ntxwv tam sim no Lag Luam (%) |
Tsawg dua los yog sib npaug 3 |
|
Rov ua dua Precision (%) |
Tsawg dua los yog sib npaug li 1 |
|
Roj siab (MPa) |
21 |
|
Thermal Endurance Chav Kawm |
H |
Stroke--Force Curve
Sab nrauv & Installation Dimensions

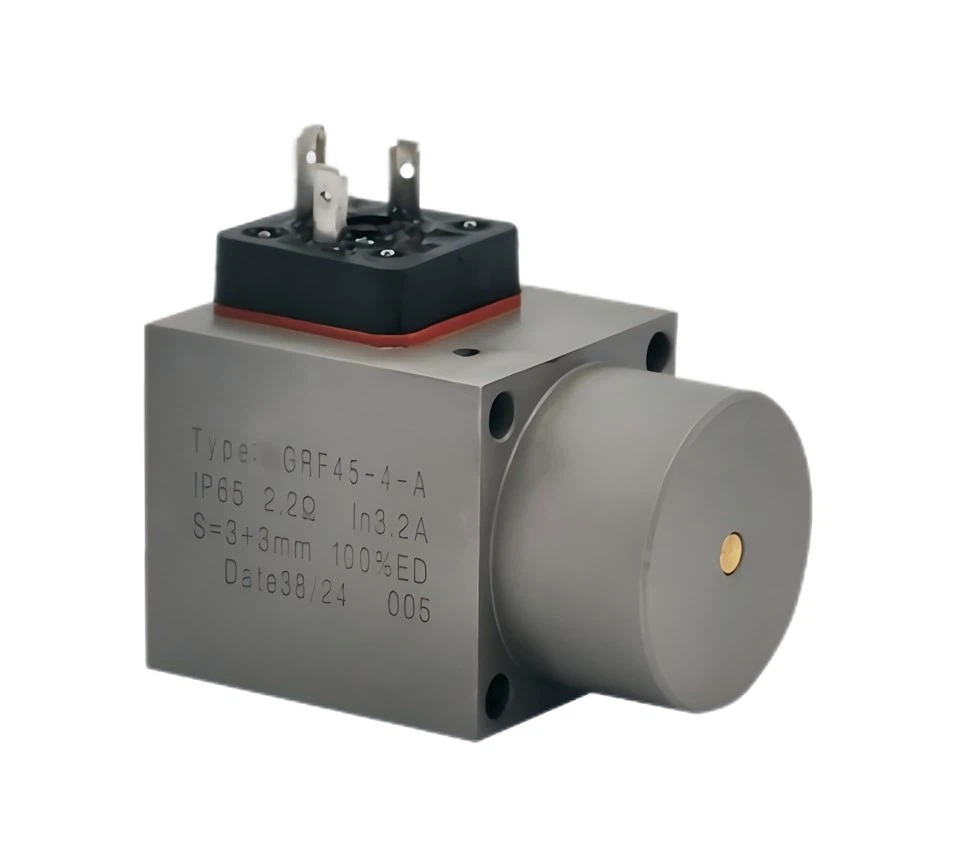

Khoom Description
Lub solenoid no tau nruab nrog cov ntsia hlau thiab muaj qhov kub tsis kam mus txog qib H.Screw proportional solenoids txuas nrog screws. Txoj kev sib txuas no yog qhov yooj yim thiab haum rau qee yam khoom siv uas tsis tas yuav tsum tau nquag disassembly lossis hloov. Qhov zoo ntawm cov ntsia hlau proportional solenoid yog tias nws yooj yim rau nruab. Raws li cov ntsiab lus tseem ceeb ntawm electro-hydraulic proportional control system, proportional solenoid ncaj qha cuam tshuam rau kev tswj qhov tseeb thiab ruaj khov ntawm tag nrho cov system. Nrog rau kev nce qib ntawm kev siv thev naus laus zis, kev tsim thiab kev ua tau zoo ntawm kev faib ua feem solenoids tau txhim kho tas li, muab cov kev daws teeb meem txhim khu kev qha rau ntau yam kev siv.
